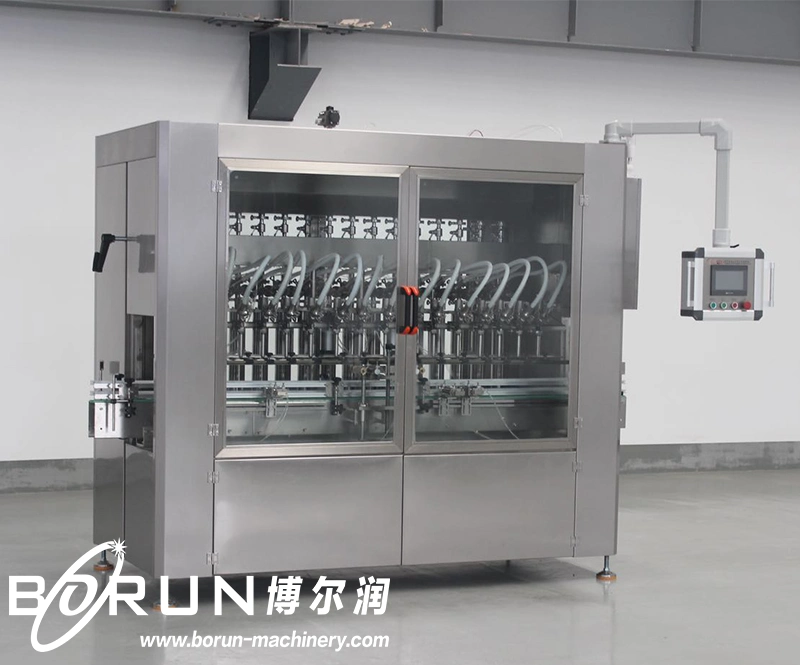

Automatic Bottle Filler 8 OZ 750ml Shampoo Filling Machine Detergent Filling and Sealing Machine
This machine is suitable for the filling of shampoo, laundry detergent, hand sanitizer and other daily necessities. Adopting the straight-line piston filling method, with higher filling precision and faster speed, no foam, no drip leakage. Use PLC and touch screen to control the machine, modify the parameters of convenient, it also has the function of parameter memory, easy to replace the product.
Descriptions:
1. Suitable material: Oil, jams, daily chemicals, and something that very viscous.
2. This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
3. Accurate measurement: adopt servo control system, ensure the piston can always reaches constant position.
4. When close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution.
5. Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.
2. This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
3. Accurate measurement: adopt servo control system, ensure the piston can always reaches constant position.
4. When close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution.
5. Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.
Features:
1. piston type make sure the filling accuracy very precision.
2. servo motor type is more efficient and save more power.
1. piston type make sure the filling accuracy very precision.
2. servo motor type is more efficient and save more power.
| Type | Z-12D |
| Filling heads | 12 |
| Suitable height | 100-280mm |
| Suitable diameter | ∅30-110mm |
| Capacity | 3000bph for 200ml, 1500-1800bph for 2L. |
| Filling precision | ≤1000ml:±2ml; 100-500ml: ±1ml. |
| Dimension | 2000*1100*2200mm |
| Main motor power | 2KW |
Main parts list:
| No. | ITEM | SUPPLIER | Brand |
| 1 | Touch screen | Taiwan | WEINVEIW |
| 2 | PLC | Japan | Mitsubishi |
| 3 | Photo sensor for bottles | Japan | OPTEX |
| 4 | solenoid valve | Taiwan | SHAKO |
| 5 | Level button | Mexico | JOHNSON CONTROLS |
| 6 | angle seat Valve | Jointed | BURKERT |
| 7 | Diving cylinder | Taiwan | AIRTAC |
| 8 | Power button | France | Schneider |
| 9 | Button | France | Schneider |
| 10 | frequency converter | France | Schneider |
| 11 | Magnetic switch | Taiwan | AIRTAC |
| 12 | oil-water separator | Taiwan | SHAKO |
| 13 | Speed reducer | China | Jiao xing |
| 14 | Relay | Japan | Omron |
| 15 | Servo motor | Japan | Panasonic |

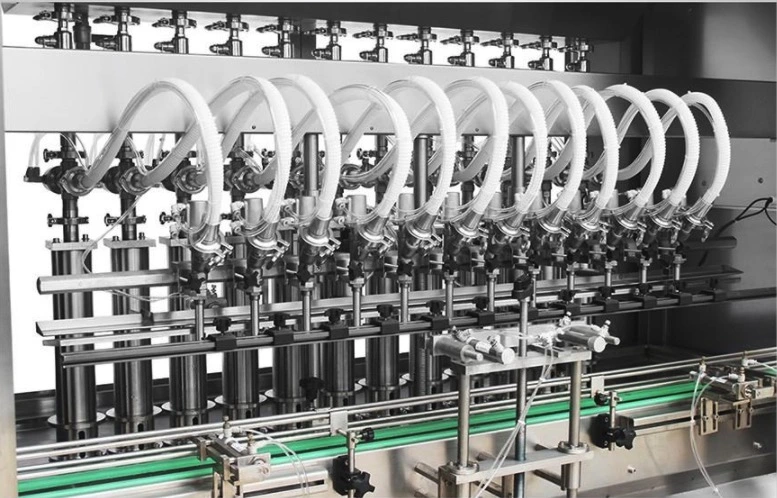

Inline Filling Machine
Quantitative filling, adjustment for one key;
Fast interface easy to be dismantled, easy to wash, no drip, driving filling.
Fast interface easy to be dismantled, easy to wash, no drip, driving filling.
No residual angle for three-way valve, long service life;
Steel sleeve residual material, cleaning for one key.
Steel sleeve residual material, cleaning for one key.
Automatic Twist off Capping Machine + Automatic Cap uploader
| Suitable bottle height | 150-300mm |
| Suitable bottle diameter | ∅40-100mm |
| Suitable cap diameter | ∅20-50mm |
| Motor power | 2.2KW |
| Dimension | 2000*850*2050mm |
| Weight | 650kg |
3. Conveyor System:
1.Side panel: 304 stainless steel wire-drawing sheets, thickness are 2.5mm.
2. Power: Jiebrand Hangzhou.
3. Supporting leg: 304 stainless steel pressing structure
4.Trunking and cover: 304 stainless steel, thickness is 1mm.
5.Chain plate: Domestic high-quality plastic chain plate, polyoxy methylene (POM).
6. Bearing housing: 304 stainless steel cage
Ms. Carolyn Zhou
borunmachinery.en.made-in-china.com
1.Side panel: 304 stainless steel wire-drawing sheets, thickness are 2.5mm.
2. Power: Jiebrand Hangzhou.
3. Supporting leg: 304 stainless steel pressing structure
4.Trunking and cover: 304 stainless steel, thickness is 1mm.
5.Chain plate: Domestic high-quality plastic chain plate, polyoxy methylene (POM).
6. Bearing housing: 304 stainless steel cage
