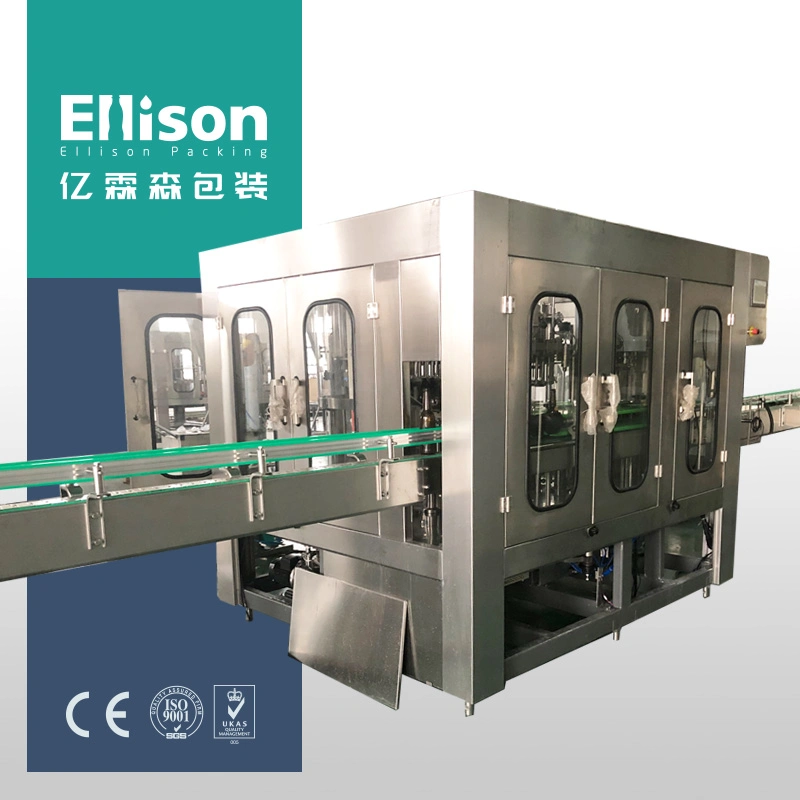

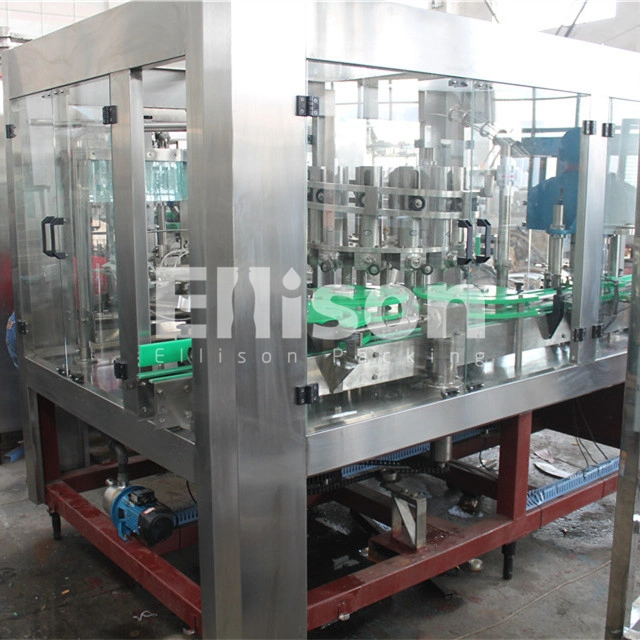

Bottle Oil Gallon Filling Machine Filler Filling and Packing Machinery
This sauce filling machine dedicated for paste material jam, like ketchup, tomato sauce, chocolate sauce, cheese, chilli sauce, cooking oil, peanut oil, olivia oil, coconut oil, sesame oil, corn oil and also lubricant oil.
This filling machine is mainly applicable for filling thicker liquid into glass bottle, plastic bottle, metal can etc. Such as ketchup, mayonnaise, honey, fruit puree etc. The filling valve adopt the piston type and each filling valve will be controlled separately.
It has characteristics of more compact in structure, more reliable and safety in operation, ease in maintenance.It has an infinite variable speed device, so its output can be changed freely.
Main Structure: Stander and Sealing Window, Gearing, Filling System, Quantity Guide Rail,PLC control system.
Stander and Sealing Window:Stander is used to install gearing system, supporting rotational part and safety window of filling machine.
Gearing: there are some parts on the working bedplate such as conveying device for inletting and out letting bottles, main dial, upright post of ration guide rail and so on. Under the working bedplate, there is gearing including main motor, transmission worm gear, overloading protection and braking device. They are used to assure above-mentioned parts run.
Filling System: It is the core of the whole machine including filling tank, valve body, piston Etc.
Vacuum anti-leakage device: It is used to wipe off the remaining oil drop on the filling nozzle after finishing filling so that prevent the oil/paste material drop contaminating the bottle and machine surface
Ration Guide Rail: Adjust the travel route within certain range and control filling quantity of material during the course of filling.
Technical Specifications for glass bottle
|Name||Automatic filling capping machine for thicker material|
|Filling capacity||50 - 2000ml|
|Bottle size||20 - 1500mm|
|Power||220v or 380v|
|Warranty||One year free|
|Applied bottle range||Round/flat/square bottles|
|Single machine noise||≤70dB|
|1||Motor||ABB / Swizerland|
|2||Electric protection switch||Schneider / Germany|
|3||Circuit breaker||Siemens / Germany|
|4||PLC||Mitsubishi / Japan|
|5||Touch screen||Siemens / Germany|
|6||Transducer||Turck / Germany|
|7||Photoelectricity switch||Banner / USA|
|8||Pneumatic element||Festo / Germany|
|9||Contactor||Siemens / Germany|
|10||Converter||Mitsubishi / Japan|
What we can do ... ... ...
|Filling liquid||Bottle type||Cap type|
|Plastic screw cap|
Aluminum screw cap
Air blower: 0.25kw
Machine size: 600*600*1800mm
Machine layout for ref
|Automatic rotary glass bottle tomato sauce filling machine||https://youtu.be/aRZX07lyC7k|
|Barrel edible oil filling capping machine (taken from client's factory)||https://youtu.be/SuIyyWGANcY|
|Two piece tin can oil filling sealing machine (taken from Client's factory)||https://youtu.be/VMpodMeGHdE|
|Hot pot edible oil canning sealing machine 2 in 1||https://youtu.be/cOKJlt8OazE|
|Automatic 2 in 1 tomato sauce filling sealing machine for tin can(taken from client's factory)||https://youtu.be/UjhW7pJjyr4|
|Tin can ketchup / Chilli paste filling / canning equipment(taken from client's factory)||https://youtu.be/qazIWEXtxKg|
|Chilli paste canning equipment / sauce filling sealing machine(taken from client's factory)||https://youtu.be/GbjsmXbV7HE|
|Rotary automatic sauce filling sealing machine(taken from client's factory)||https://youtu.be/CA6tBPO0ITU|
|Chilli sauce filling packing equipment(taken from client's factory)||https://youtu.be/mPQsiCudOOA|
|Hair gel filling machine with piston type filling method||https://youtu.be/nVPiL1L5gE4|
|ready to eat bird nest filling machine for glass jar||https://youtu.be/zFqi5NuwR-Y|
|Glass jar honey filling machine||https://youtu.be/rihUzzN4Wy8|
|Tremella and red dates (pulp juice) filling capping machine||https://youtu.be/W1GahDjkbt0|
|Chilli sauce filling capping machine for glass bottle (taken from client's factory)||https://youtu.be/PniqFAXQgSk|
|Soy sauce filling machine with hot temperature||https://youtu.be/RoW8QNrOEe4|
|Semi-automatic multi functional piston type filling machine||https://youtu.be/y0uG33ez3PE|
|Table type semi-automatic water / sauce filling machine||https://youtu.be/Z4A-CZJjDDA|
How to get quotation?
Please write to us with below information for getting detailed quotation sheet quickly:
- What is the filling material;
- What is your bottle type and cap type;
- How many bottle types that you have;
- How many bottles per hour you will produce;
The sample service
1. we can send you the video of the running machine.
2. you are always welcome to come to visit our factory, and you may see the operation of the machines here . We will make the arrangement to pick you up when you come .
3. If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory.
1. we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2. at the same time we will give you our professional suggestion.
1. we will provide the bill of load on time to make sure you can get the machine quickly.
2. when you finish the Preparation conditions ,our engineer will go to your factory for the installation, testing and also training.
3. we provide one year warranty with spare parts free.
