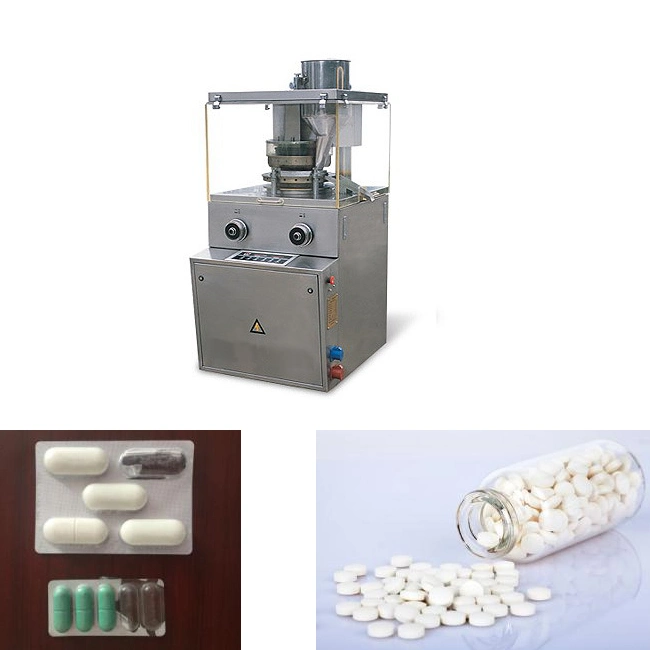

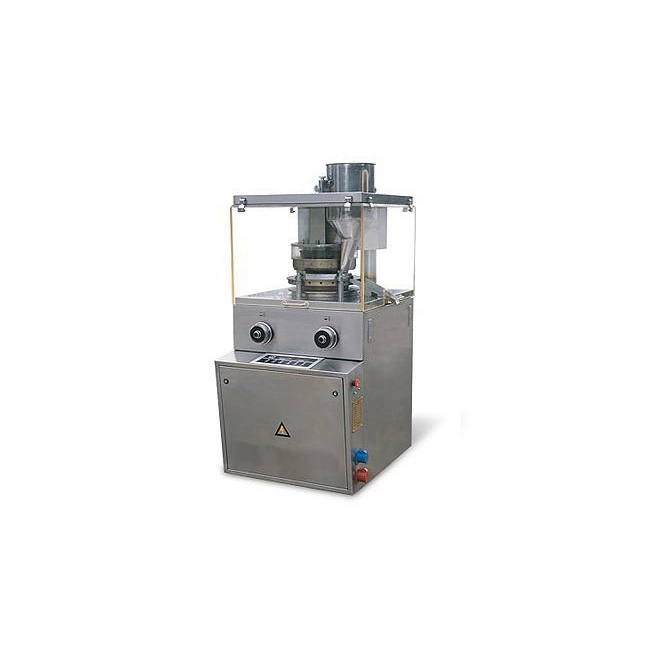

chicken cube tablet press machine (ZP Pass CE)
It is mainly used in the tablet production in pharmaceutical factories. The machine is also applicable to foodstuff, electric cell, chemical and electronic industries to press the hard-forming material into tablets.
1. Applications
This machine is one kind of rotary tablet press machine, for pressing the various kinds of granular materials into tablets.It is mainly used in the tablet production in pharmaceutical factories. The machine is also applicable to foodstuff, electric cell, chemical and electronic industries to press the hard-forming material into tablets.
2. Functions and Features
This machine adopts a fully enclosed structure with the operation compartment isolated from the outside. Ensuring the cleanness in the tablet compressing area without creation of cross contamination with the outside. The compressing compartment is wholly made of stainless steel , which is in compliance with the GMP requirement on the production of pharmaceuticals.The surface of turret is with chrome plating to avoid the wearing of turret.The machine adopts the adjustment of speed by means of frequency inversion (inverter). The motor is connected with under plate to avoid the motor shaking when working.Fully automatic lubrication system with interval type, micro flow and quantitative , to lubricate the upper & lower tracks and the heads of punches and reduce the wearing of these parts.An overload protection units is equipped in the machine to avoid the damage of the punches and apparatus. When overload occurs, the machine can be stopped automatically.Different kinds of impellers for force feeder, to meet the feeding requirement of different raw materials.
3. Main Specifications
| Model | ZP15 | ZP17 | ZP19 |
| Quantity of punch dies (Pairs) | 15 | 17 | 19 |
| Maximum main pressure (kn) | 60 | 60 | 60 |
| Maximum tablet diameter (mm) | 25 | 20 | 13 |
| Maximum punching depth (mm) | 15 | 15 | 15 |
| Maximum depth (mm) | 6 | 6 | 6 |
| Maximum productivity (pcs/h) | 37500 | 40000 | 42000 |
| Speed (r/min) | 37 | 37 | 37 |
| Power of main motor (kW) | 2.2/960, 380V/50 | 2.2/960, 380V/50 | 2.2/960, 380V/50 |
| main machine size (mm) | 615 * 890 * 1415 | 615 * 890 * 1415 | 615 * 890 * 1415 |
| Weight of main machine (kg) | 700 | 700 | 700 |
