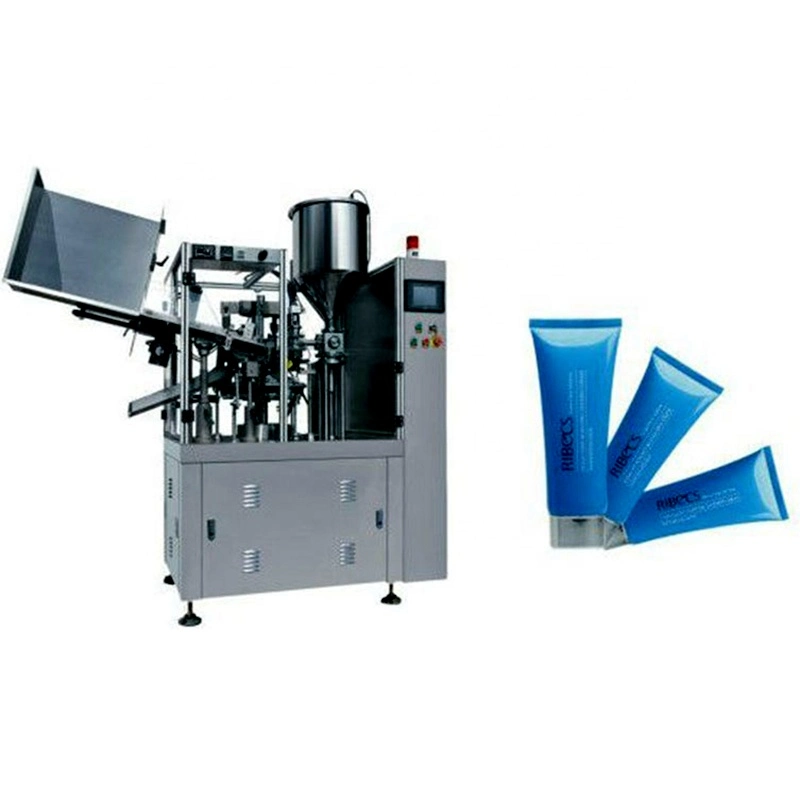

Cosmetics Soft Plastic tube Filling Sealing Machine Tube End Sealer
Automatic Tube Filling & Sealing Machine is suitable for all kinds of laminated tube and plastic tube filling sealing cutting and date printing, widely used in daily chemical products, medical products, chemicals, food, cosmetics, toothpaste industries.
It can fill cream/paste/viscosity products into soft tubes, and automatically finish the sealing cutting and date printing functions. The machine usually has totally enclosed type protect cover, it is the ideal filling sealing machine for plastic and laminated tube, especially for medical and such as special industry.
| Product | Cosmetics Soft Plastic tube Filling Sealing Machine Tube End Sealer |
| Model | HTGF-80 |
| Voltage | AC380/220V |
| Pressure | 0.6Mpa |
| Power | 2KW |
| Productivity | 30-80pcs/min |
| Filling Accuracy | ±1% |
| Hopper Capacity | 50L |
| Filling Volume | 5-25ml, 15-150ml, 30-200ml (adjustable) |
| Tube Diameter | 10 to 50mm |
| Tube Length | 210mm |
| Size | 1500*1100*1900mm |
| Weight | About 850KG |
Q: We are worrying about the high viscosity of the filling paste which cause poor fluidity.
A: We are heated stirring, which can enhance the fluxility of the paste, easy to fill.
Q: The span of filling is large.
A: If the span of filling is large, you can change the mold.
Q: What is the folding method of aluminum tube?
A: There are 4 folding methods for your choice: Double Folding, Triple Folding, Four Folding, Five Folding.
Q: Can the machine fill different filling volume from 2 ml to 250 ml?
A: Yes, you just need to change the filling pump.
Q: The flow of our product is not very good, can you do it?
A: Yes. We can custom a double heated hopper for you.
Q: If the product is not liquid, can the machine be filled?
A: Yes, we can customize the double-layer heating hopper.
Q: How to clean the machine?
A: The hopper and filling head can be disassembled for easy cleaning.
Q: Is it possible to do it on a machine with different tubes?
A: The length of the tube can be adjusted. If the diameter is different, you need to replace a set of molds.
Q: Can the machine be pumped with nitrogen and vacuum?
A: Nitrogen, vacuum device can be added. Nitrogen device is added before filling, vacuum device is added after filling.
Q: Is the machine sealing by ultrasonic or heated?
A: Heat sealing. If it is an aluminum tube, it is a folded sealing.
Q: Do we need a water cooler unit?
A: Internal heating should be equipped with water coolers, you can purchase by yourself, or using circulating water.
Q: If we not add a water cooler unit, does it have a good effect?
A: The effect is certainly not as good as add a water cooler unit.
Q: How many sets of filling sealing heads does the machine have?
A: The machine comes with 1 set of mold.
