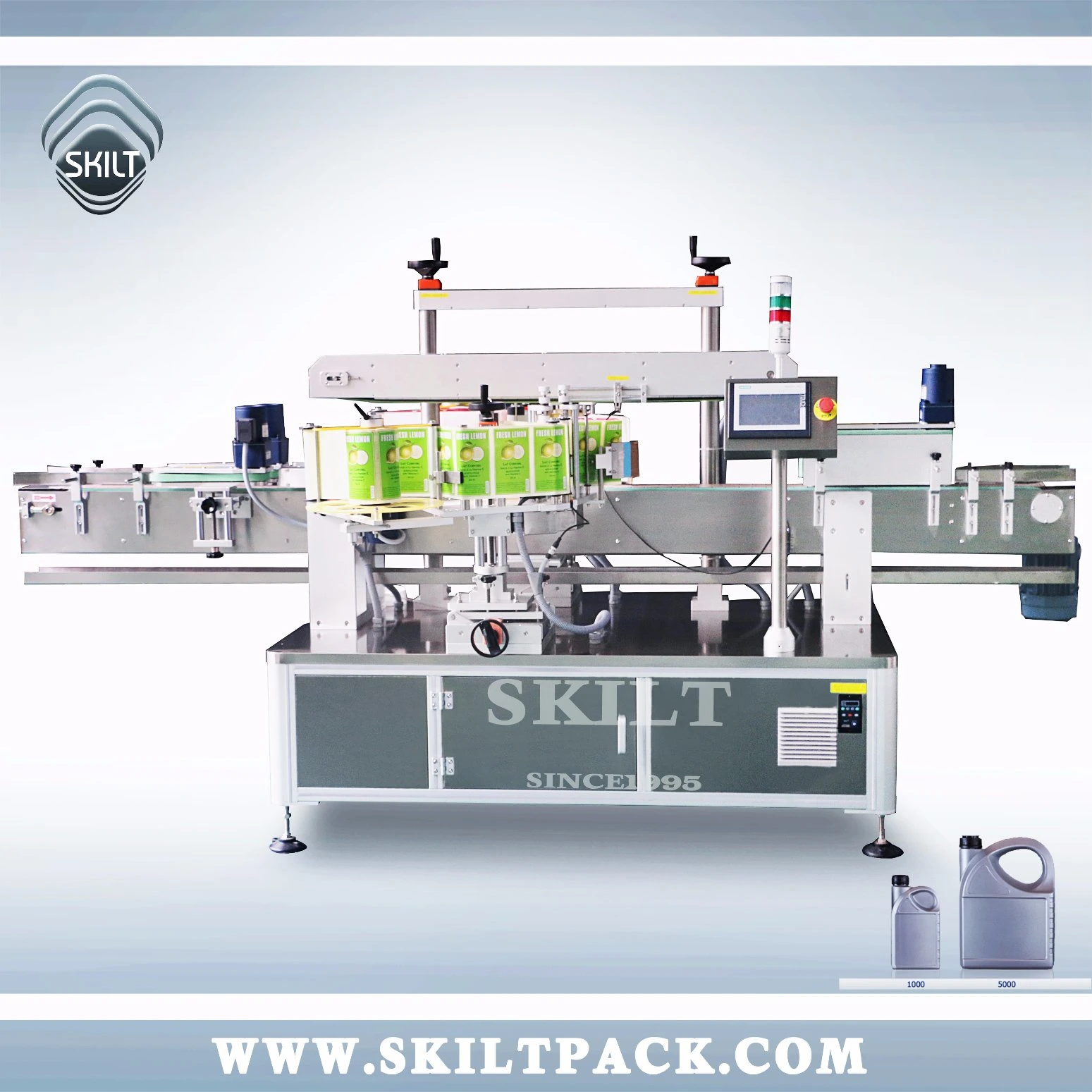

1.The Scope of Application:
Labeling on front and back sides of different kinds objects with two labels at the same time.
(P.S. our labeling machine can be designed according to your needs)
2. Device Characteristics:
Electrical cabinet,Conveying mechanism,Separate bottle device,Press bottle device,Roll label device,Brush label device,1# and 2# labeling engines,Operation system and control system
3. Device Advantages:
1) Control system: use Europe and United States series American AB brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: The man-machine control 10 inch touch screen, directly visual interface easy operation ,with Chinese and English two kinds language, also rich with the help of the function and fault display function.
3) Check system:Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for the worker.
4) Send label system:use American AB high-power servo control system, stable with high speed.
5) PARAMETER SAVE:can save 30 groups labeling parameters, when change the bottles, don't need reset parameters, just adjust the machine part is ok.
6) Alarm function: such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
7) Machine Material:The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
8) Labeling way : use the servo send label system to send label on product surface.
9) Low voltage circuit all use the German Schneider brand.
Technical Parameter :
|Driving Mode||Servo motor|
|Yield(pcs/min)||20-200( can adjustable )|
|Operating direction||Left or Right|
|Labeling Accuracy||±1.0 mm|
|Label roll inner diameter||76 mm|
|Label roll outer diameter||350 mm(max)|
|The suitable size of label||Standard size: H: 15-130 mm L: 15-300 mm|
(Other size can customized )
|The suitable size of bottles||Can customized|
|Printer device use air||5kg/cm ²|
|Conveyor height||900±50mm (Height can customized)|
|Machine size||3000(L) l800(W) 1800(H)mm|
|Voltage (In China)||AC220V 50/60HZ Single phase|
(Can customized )
Main Electrical Configuration :
|1||PLC control system||288-1ST20-OAAO||1 Set||SIEMENS|
|3||Servo motor||2004-RZ08BAIAN3||2sets||America AB|
|5||Frequency converter||6SL3210-5BB15-5UV0||1 set||SIEMENS|
|FS-N18N||1 set||Japan KEYENCE|
|7||Photoelectric sensor (Check opaque label)||GS61/6.2||2 sets||German Leuze|
|Photoelectric sensor (Check opaque and transparent label)||GSU 14B/66.3-S12||2 sets||German Leuze|
|8||Main transport motor||M2BAX-0.55KW-4P-B14||1 set||Switzerland|
|9||Separate bottle Motor||40W1:30||2 sets||German JSCC|
1. Q: What label material does your machine use ?
A: Self-adhesive sticker.
2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .
3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.
4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .

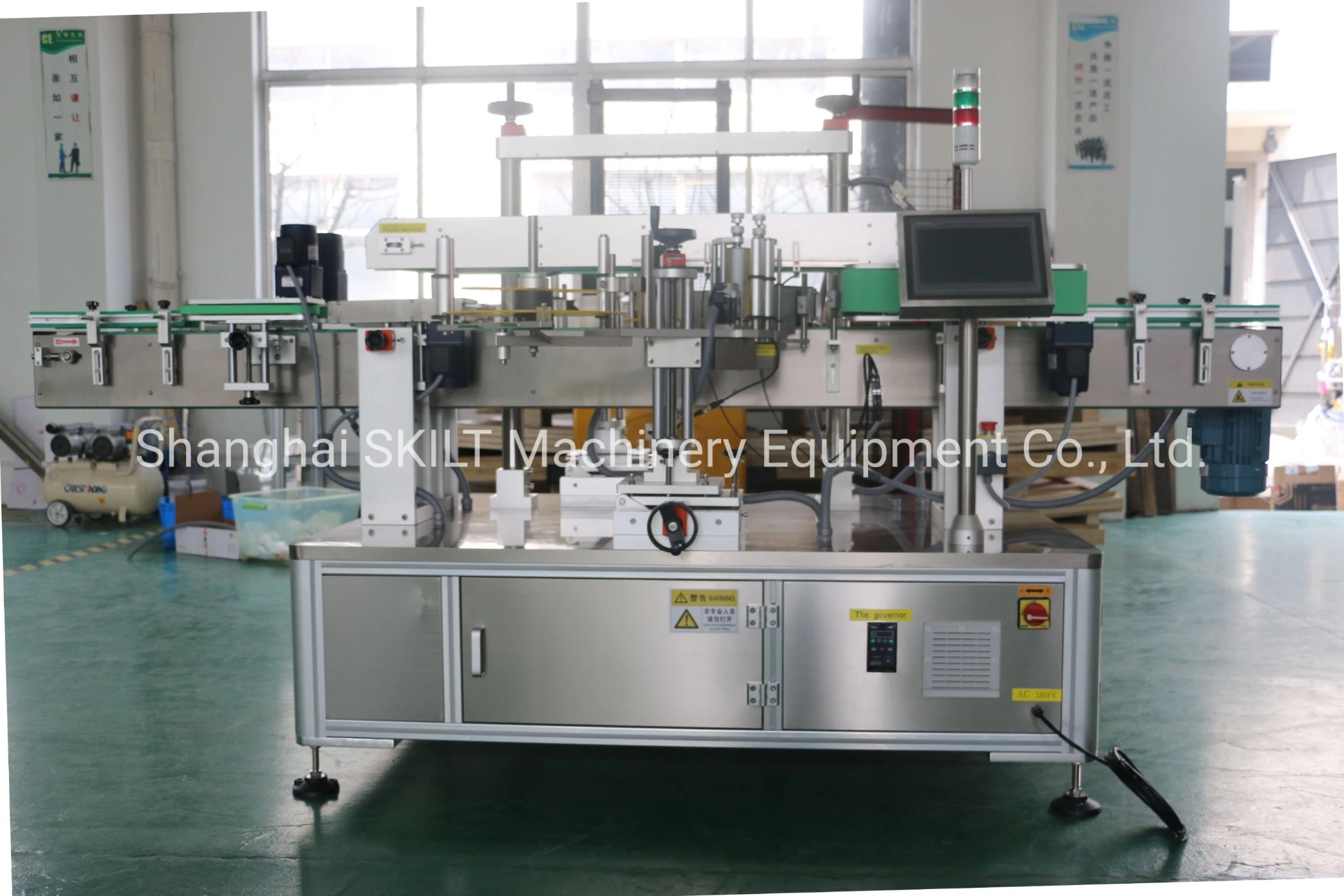

Machine Detailed Images
