Linear Piston Filling Chili Sauce Soy Sauce Filling Capping Labeling Machine Production Line

 Linear piston filling chili sauce soy sauce filling capping and labeling machine production lineBest sale Salad dressing bottle sauce jars filling sealing machine production line Application widely useLinear piston filling chili sauce soy sauce filling capping and labeling machine production line function  1. Thi

Featured Products

 Linear piston filling chili sauce soy sauce filling capping and labeling machine production line
Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line
Best sale Salad dressing bottle sauce jars filling sealing machine production line Application widely use
Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line
Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line
Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line

Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line

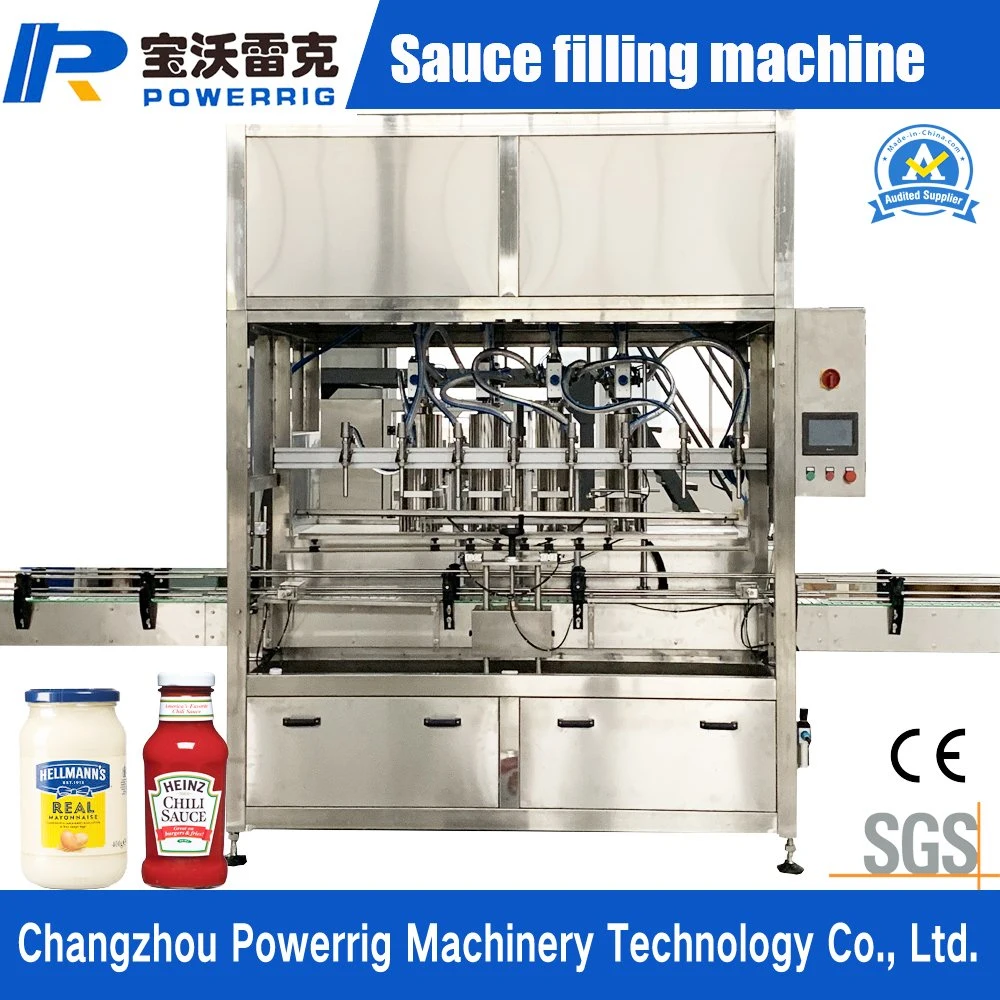

Linear piston filling chili sauce soy sauce filling capping and labeling machine production line function

1. This machine is suitable for filling aqueous solutions and cream products, particularly for high viscosity materials (such as cosmetics, seed coating agent, motor lubricating oil, suspending agent etc.) the effect is obvious.
2. Using PLC programmable control, with touch screen and man-machine interface system; automatic bottle feeding, automatic filling, automatic send bottle out; driven by a servo motor, double screw drive, control the movement of the piston rod to ensure the stability of the filling, filling precision higher.
3.Used double liquid box and is provided with a filter plate, mechanical three-way easy to clean and replace the material more convenient. It can be with the capping machine, labeling machine supporting the formation of whole production line.
4.It integrates light, machine, electricity and gas into one body. Is an easy to operate.
Linear piston filling chili sauce soy sauce filling capping and labeling machine production line main technical parameter
MoldeHeadsSuitable bottleCapacity(Bph)PreciseMachine sizePowerAir source
 ZF-20 20 headsSuitable bottle diameter:
Ф40mm-Ф300mm

(can customize)
<8000 (500ML)+/-1%-2%2800*1300*2600 3KW0.65-0.6 Mpa
 ZF-12 12 heads<5000 (500ML)+/-1%-2%2400*1100*2200 3KW0.65-0.6 Mpa
 ZF-8  8  heads<3000 (500ML)+/-1%-2%2200*1100*2200 2.5KW0.65-0.6 Mpa
Linear piston filling chili sauce soy sauce filling capping and labeling machine production line detailed parts introduction
Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line

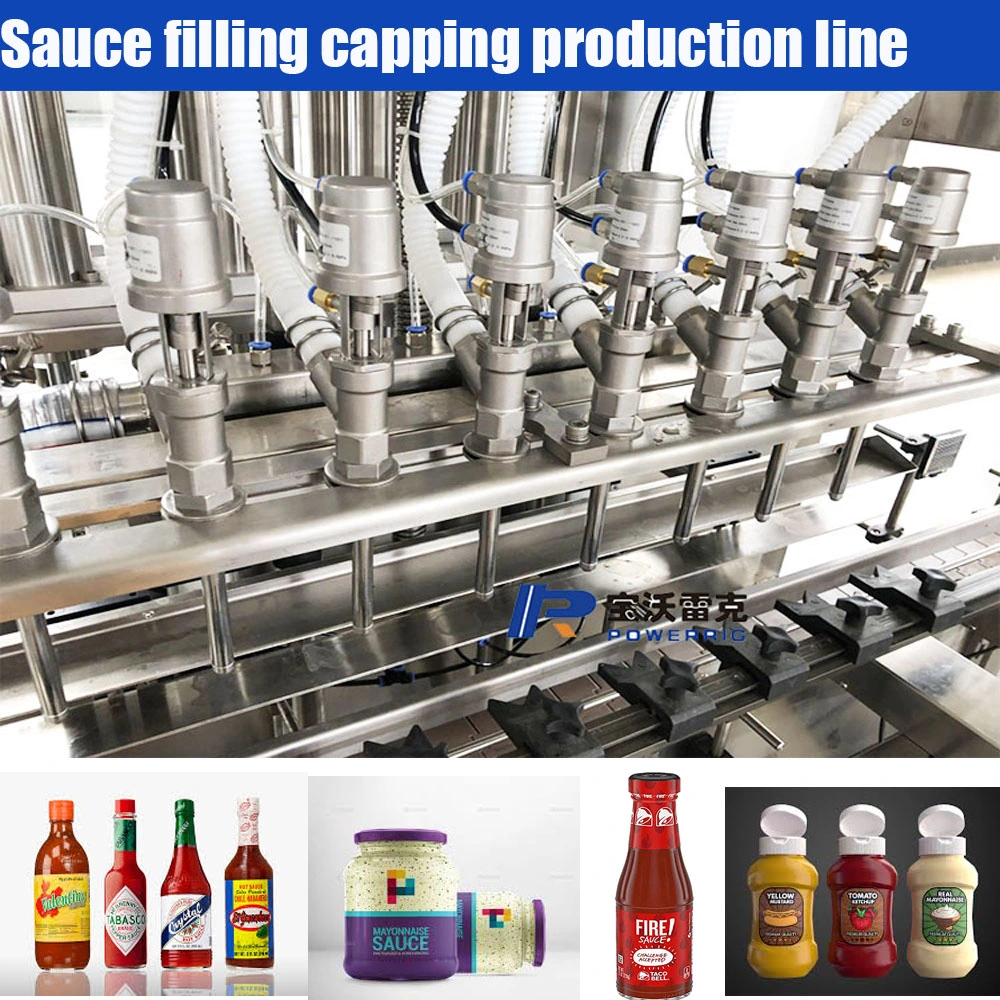

1. Anti-drop filling nozzle , piston cylinder control filling (Servo motor contro), filling     stable and filling accuracy higher
Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line

2. Servo motor control double screw rod motion , to control the filling nozzle diving and lifting fillng , can suitable to foam material liquid , high viscosity liquid filling.
Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line
3. Piston cylinder with take off cylinder(Automatic cleaning system), convenience clean piston cylinder, piston cylinder volume can customize according to customer need different filling volume, high accuracy.
Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line

4. Sauce filling machine after finishing filling , also can match with capping machine, labeling machine and packing machine Composition a whole production line
Americal customer come to factory inspect chili sauce filling capping machine production line
Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line


Company Profile
Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line

Machine packing shipping
Linear Piston Filling Chili Sauce Soy Sauce Filling Capping and Labeling Machine Production Line

After-sale serivce
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

FAQ

Q:How Can I get a detailed quotation of Linear piston filling chili sauce soy sauce filling capping and labeling machine production line  from you?
Just send us inquiry through this web page is ok. I will reply your any question within in 6 hours.

Q:Can your company able to offer 2 years gurantee?
Yes it's no problem for our company. During the warranty, if you need any spare parts, we will delivery it to you in DHL for free.

Q:Do you offer a free set of replacement parts for parts that commonly wear out quickly?
All spare parts are always avaliable for delivery. Above 90% spare parts are made by ourselves. Because we have our own processing center, so we can supply at anytime.

Q:What is the whole production line?Can i connect labeling machine ,bottle feeder with filling machine in whole line?
do not know how many meters of conveyors are involved so can not determine the over-all size of the line with all of its components.
We can help you match pipe and pump to transfer material form raw material tank to filling directly., so it can be totally auatomaticlly.We will design and make a layout plan according to customer's factory floor plan.

Q:What is the cost to send installation/training staff? How many staff do you need to send?
Whole installation/traning process needs 2peoples. Around 10days. Client needs to provide us round-air ticket, visa fee, local transpotation, accomodation, food, and 80USD/day/person.
