Horizontal Wrapping Machine/Flow Wrapperbiscuits, rice Krispies treats, snow cakes, breads, instant noodles, rice noodles, daily necessities, tissues, sanitary towels, industrial parts, paper boxes, tray…CharacterDual servo motors and single frequency conversion control,.Automatic stop when material absence, run film cutte

Featured Products

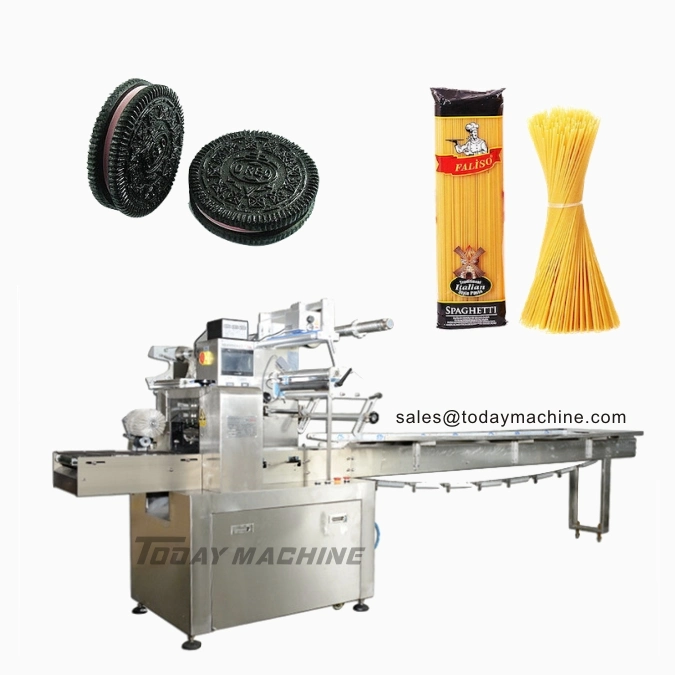

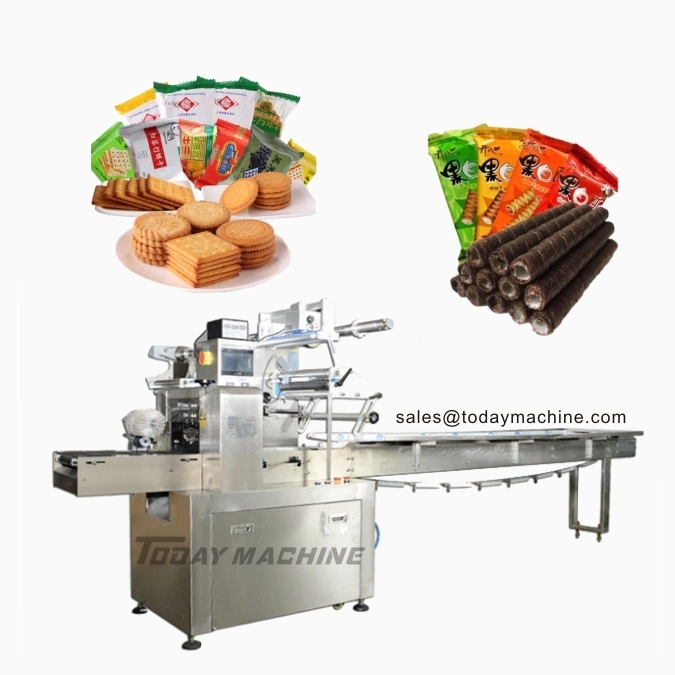

Horizontal Wrapping Machine/Flow Wrapper

biscuits, rice Krispies treats, snow cakes, breads, instant noodles, rice noodles, daily necessities, tissues, sanitary towels, industrial parts, paper boxes, tray…

Character

  • Dual servo motors and single frequency conversion control,.
  • Automatic stop when material absence, run film cutter stop.
  • Temperature control module inside, temperature independent PID control, accurate and suitable for packaging different material.
  • Prevent from cutting material function without stop, prevent from cutting material, improve the operating efficiency of the machine and reduce equipment loss.
  • Touch screen interface, easy and quick setting and operating. Self failure diagnosis, clear failure display.
  • Positioned stop function, without sticking cutter or wasting film.

Option

  • Date coder
  • Gas flushing system
  • UV sterilization
  • Alcohol Spraying
  • Extruder system
  • Stacking system
  • Turntable system



Technical data

ModelSpeed
(pcs/min)
Max film width
(mm)
Bag size
(mm)
Power
(Single phase)
Dimension
(mm)
Weight
(kg)
FW-140<500140L: 30-80
W: 20-100
H: 6-12
220V
50-60Hz
3.5kw
3800x1350x1450980
FW-24030-220240L: 75-190/150-350
W: 40-100
H: <35
220V
50-60Hz
2.8kw
3900x840x1330600
FW-28030-220280L: 85-210/170-380
W: 40-125
H: <45
220V
50-60Hz
2.8kw
3900x840x1330600
FW-32030-220320L: 110-250/200-420
W: 40-150
H: <55
220V
50-60Hz
2.8kw
3900x840x1330600
FW-45020-200450L: 115-480
W: 80-215
H: 80
220V 50-60Hz
4.5kw
3900x840x1330700
FW-60020-100600L: 115-230
W: 40-280
H: 80
220V
50-60Hz
4.5kw
3900x840x1330700
