Small Filling Machine Cream Filling Machine Bottle Filling Machine

Product DescriptionA03 Manual filling machine and A02 Pneumatic filling machine can fill paste and liquid quantified from 5-50ml. The filler can fill liquid medicine , fluid food,lubricating oil, shampoo, cosmetic and so on.It is specially designed by our factory for medium or small scale enterprises, labs, hospitals o

Featured Products

Product Description

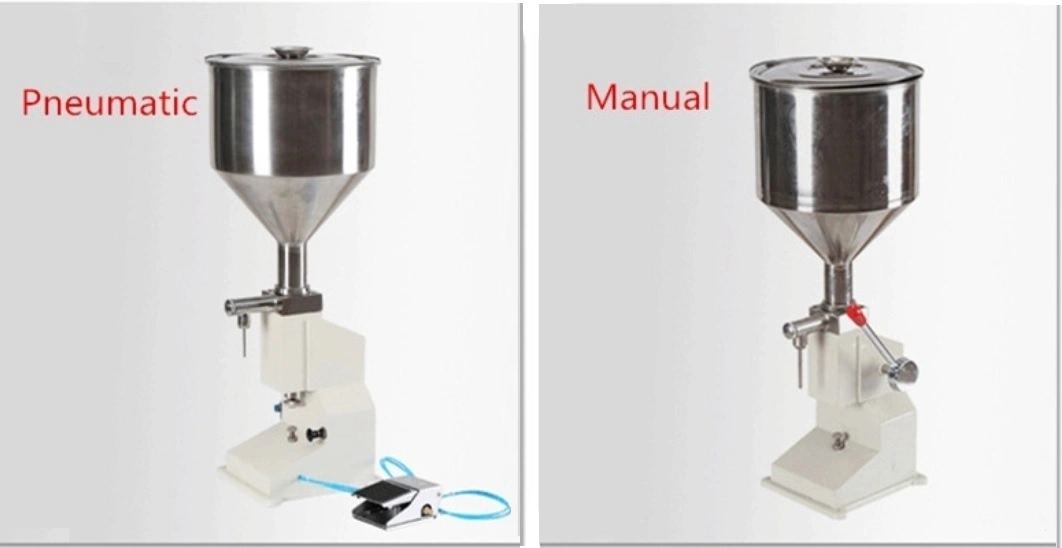

A03 Manual filling machine and A02 Pneumatic filling machine can fill paste and liquid quantified from 5-50ml. The filler can fill liquid medicine , fluid food,lubricating oil, shampoo, cosmetic and so on.It is specially designed by our factory for medium or small scale enterprises, labs, hospitals or beauty museums in daily use and other chemical industries.



Features



1. Easy to operate without electric, only pneumatic. Filling by pedal.

2.The body and the material contact parts are made of stainless steel and PTFE, with wear, Anti-corrosion characteristics, especially for small and medium enterprises in the industry or hospital preparation room, laboratory and other units of low-dose filling work.

3. We can be customized according to customer needs.

4. In the process of using, need on a regular basis sleeve, bevel gear and rack components such as adding lubricating oil.

5.If you do not use it for a long time, you will need to fully wash away the material contact parts to prevent the material from deteriorating in the machine.


Specification


Model

A02

A03

Operation

Semi-automatic

Manual

Filling Range

5-50ml

5-50ml

Filling Accuracy

1%

1%

Filling Speed

20-60 times/min

20-30times/min

Working pressure

0.4-0.6Mpa

0

Hopper capacity

10L

10L

Dimensions

340*340*780mm

290*290*720mm

Weight

14kg

13kg

Filling material

Cream, honey, shampoo, paste, etc.

Cream, honey, shampoo, paste, etc.

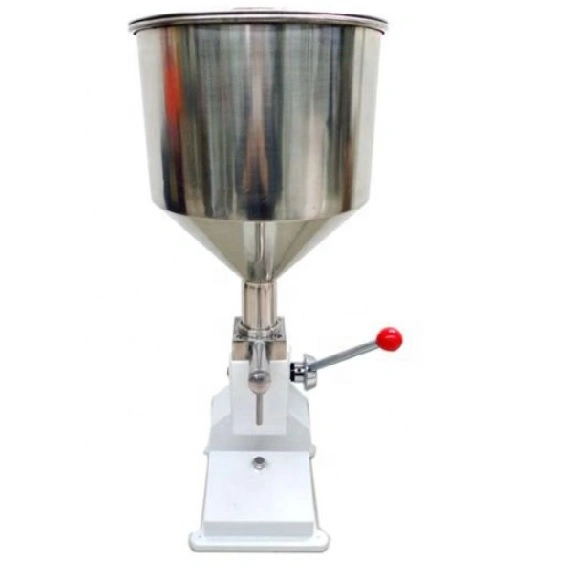

Photos

Small Size Filling Machine Face Cream Filler Bottle Filling MachineSmall Size Filling Machine Face Cream Filler Bottle Filling MachineSmall Size Filling Machine Face Cream Filler Bottle Filling MachineSmall Size Filling Machine Face Cream Filler Bottle Filling Machine
Applications:
Small Size Filling Machine Face Cream Filler Bottle Filling MachineSmall Size Filling Machine Face Cream Filler Bottle Filling MachineSmall Size Filling Machine Face Cream Filler Bottle Filling MachineSmall Size Filling Machine Face Cream Filler Bottle Filling Machine
