Flat Die Animal Feed Pellet Making Line
Introduction

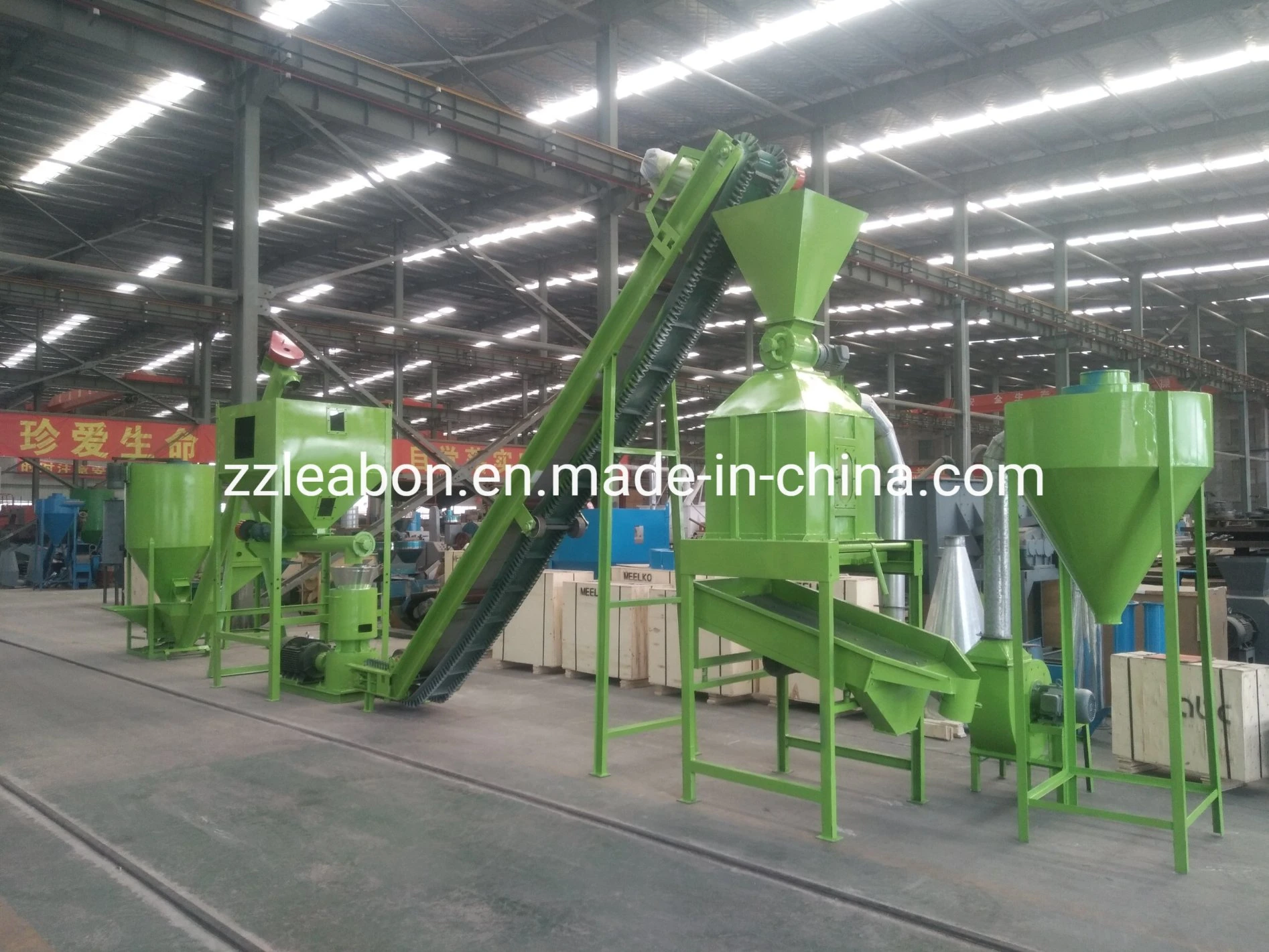

Complete animal feed production plant include feed hammer mill, feed mixer, feed pellet machine, feed pellet cooling and screening machine, packing machine.
It is mainly used to produce different animal feed pellets for chicken, pig, cattle, sheep, fish, shrimp etc different animals.
Raw materials
Wheat, wheat bran, corn, soybean, Barley, oats, alfalfa, grass, fish meal, bone powder, meat etc materials.
1. Hammer Mill
The task of this section is to crush the clean materials we got in the last section into powder(less than 3mm),and then deliver the powder to the next section.
2. Feed Mixer Machine
The task of this section is:
A. evenly mix different materials into complete powder feed.
B. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure the continuous operation.
3. Feed Pellet Machine
The task of this section is to pelletize the powder feed to required sizes.
The task of this section is to pelletize the powder feed to required sizes.
4. Feed Pellet Cooling and Screening Machine
After the pelletizing process, the temperature of the feed pellet is about 60/80 degrees Celsius,with a moisture content of about 15%. A Cooler must then be used to reduce the moisture content of the pellets to about 3/4%, thereby making the pellets easier to store. And for screening and classifying of mash or pellet feed.
5. Packing Machine
Independent packaging system, manual packing ,optional automatic packing like following, high precision.10-50KG/bag.
Independent packaging system, manual packing ,optional automatic packing like following, high precision.10-50KG/bag.
Size Information
| Machine | Capacity | Motor | Weight | Dimension |
| 9FQ Hammer mill | 400kg/h | 7.5kw | 350kg | 1100*550*850mm |
| Vertical Feed mixer machine | 500kg/h | 7.5kw | 180kg | 1250*1650*2500mm |
| Flat Die feed pellet machine | 400kg/h | 15kw | 380kg | 1200*520*1070mm |
| SKLN Pellet Cooling machine | 2t/h | 0.75kw | / | / |
| Pellet Packing machine | 300bags/h | AC 220V 50Hz | / | 2560*650*715mm |
